Jetting a 2-Stroke Kart by the Numbers: EGT and RPM Method

No corner of karting carries more folklore than carburetion. Plug colours read like tea leaves, settings inherited like recipes, and somewhere behind it all an engine that either sings or seizes.

This kart jetting guide replaces the folklore with numbers. Not because the old craft is worthless, but because the numbers settle in one session what the folklore debates all season.

The method is EGT first, RPM second, lap time last. The ear runs quality control throughout. Simple, not easy.

What jetting actually decides

The carburettor sets the fuel-air mix. And the mix sets three things at once: power, response, and engine life.

Rich means extra fuel: a softer, dirtier engine, safe and slow. Lean means extra air: crisp and fast, right up to the edge where fast becomes expensive.

Every jetting decision is a position on that line, and the whole game is sitting as close to the edge as the day allows without crossing it. That's the craft.

The two mistakes don't cost the same, and that asymmetry sets the bias for everything below. Rich costs tenths. Lean costs engines.

The kart jetting guide method: EGT first

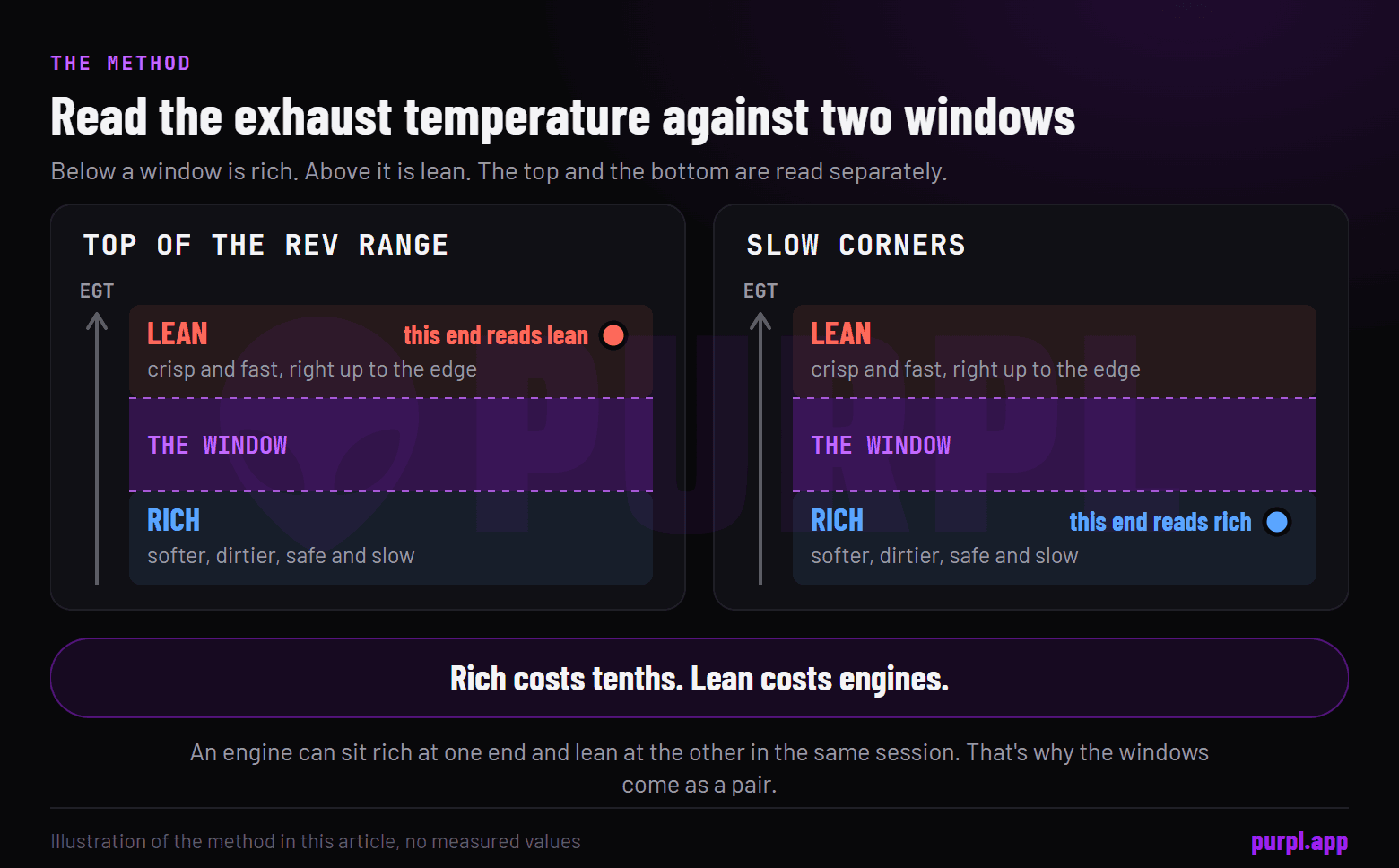

Exhaust temperature is the report card. It grades the top of the rev range and the bottom separately.

Your engine tuner's dyno work names the windows: the top-of-rev-range maximum and the slow-corner minimum. Jetting's job is keeping the day inside them.

The full reading method, including the driving-style trap that fools EGT comparisons, lives in the kart EGT guide. This article is about the decisions the readings feed.

One thing before the first session, though. Talk to your tuner properly when you collect those windows.

Ask for the numbers for your engine, not the paddock's. Ask where the safe floor sits, the point past which leaner only adds risk, and ask when he wants a phone call instead of another experiment.

A tuner who built the engine would rather take that call than rebuild it.

The decision loop is short. One jetting step, a clean back-to-back run, then the verdict.

Did the EGT ceiling move toward the window? Did peak RPM improve? Did the engine pick up cleaner off the slow corners?

One step at a time, always. The carb is the easiest place in karting to change two things and learn nothing, the classic trap from data analysis mistakes.

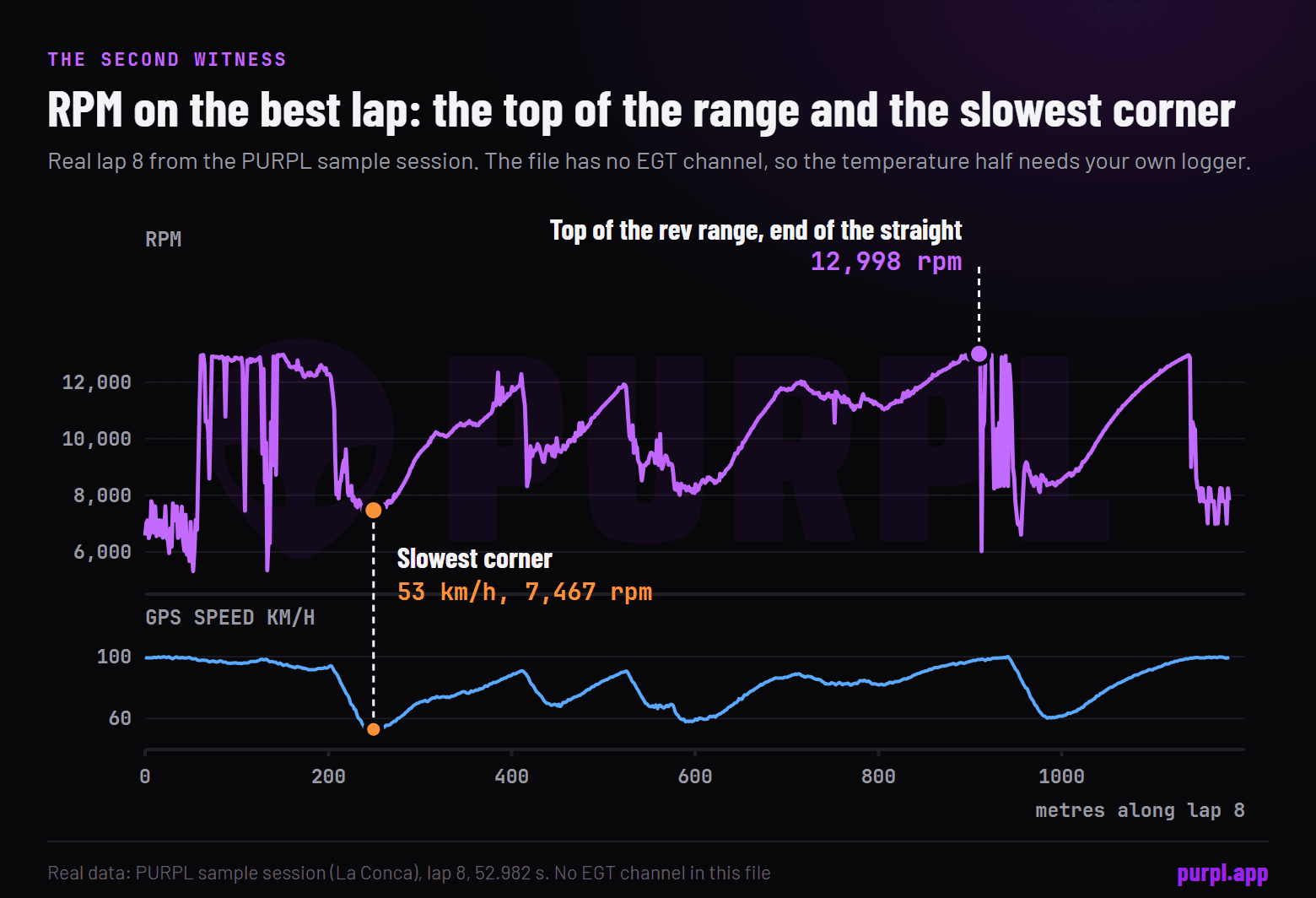

RPM is the second witness. A correct leaner step shows up as peak revs arriving harder at the end of the straight, a step too far as the temperature warning before any power gain.

The pairing method comes from kart RPM data.

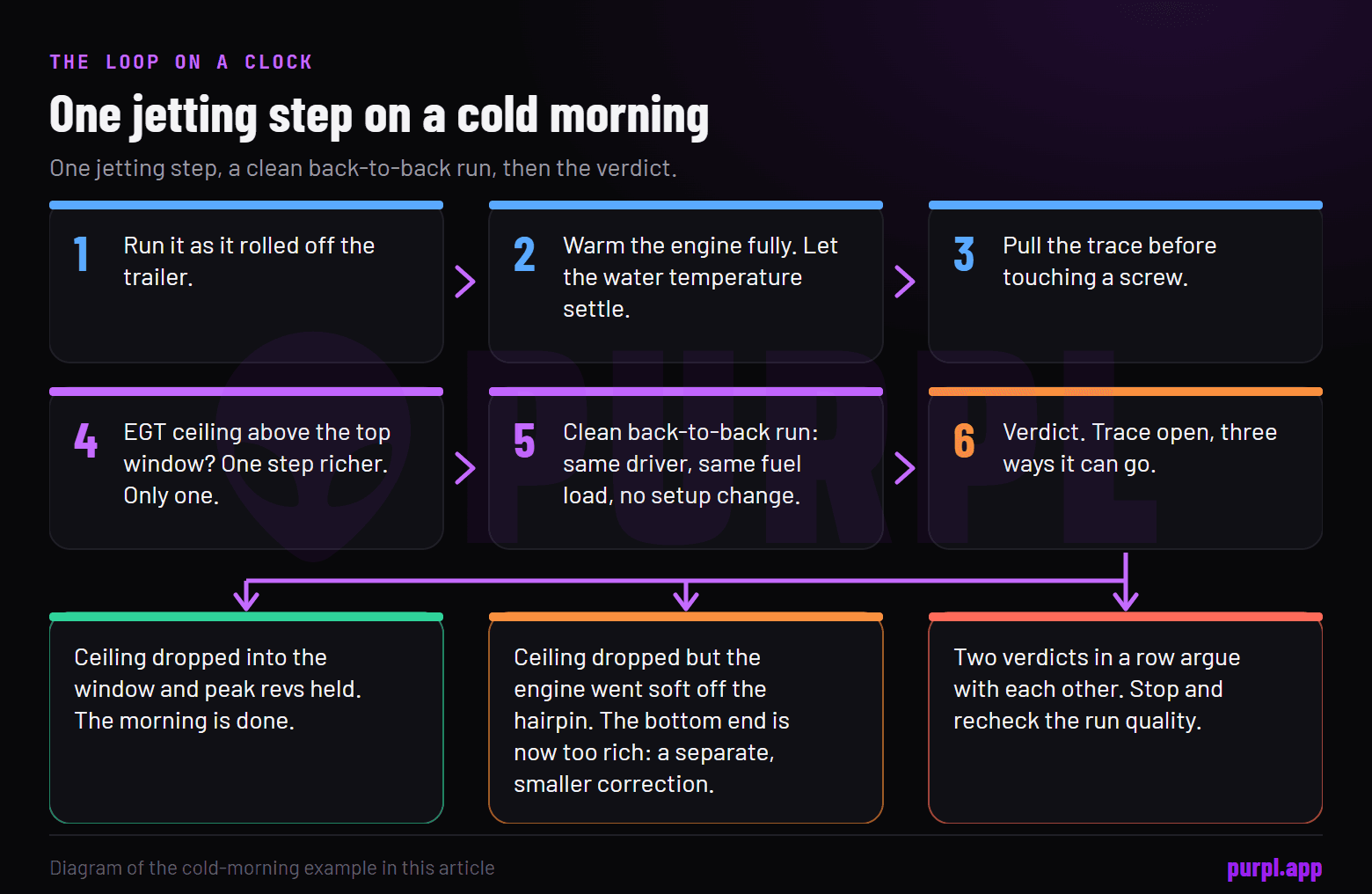

Now put the loop on a clock. Picture the first session of a cold morning, the kind where the air is dense and every engine in the paddock wakes up hungry.

You don't guess. You run the kart as it rolled off the trailer, let the engine warm fully and the water temperature settle, and pull the trace before touching a screw.

Say the EGT ceiling sits above the top window. The cold air has leaned the engine out, exactly what the weather directions predicted, so the move is one step richer. Only one.

Out again for a clean back-to-back run. Same driver, same fuel load, no setup change hiding in the comparison.

Back in, trace open, verdict time. If the ceiling dropped into the window and peak revs held, the morning is done. If the ceiling dropped but the engine went soft off the hairpin, the bottom end is now too rich, and that's a separate, smaller correction.

And if two verdicts in a row argue with each other, stop. Recheck the run quality before blaming the carb, because the driving-style trap that fools EGT comparisons loves a messy back-to-back.

That's the whole job. Twenty minutes, one variable, one verdict. Write down what the weather was doing when the verdict landed, because that note is next month's head start.

Weather moves the mixture every day

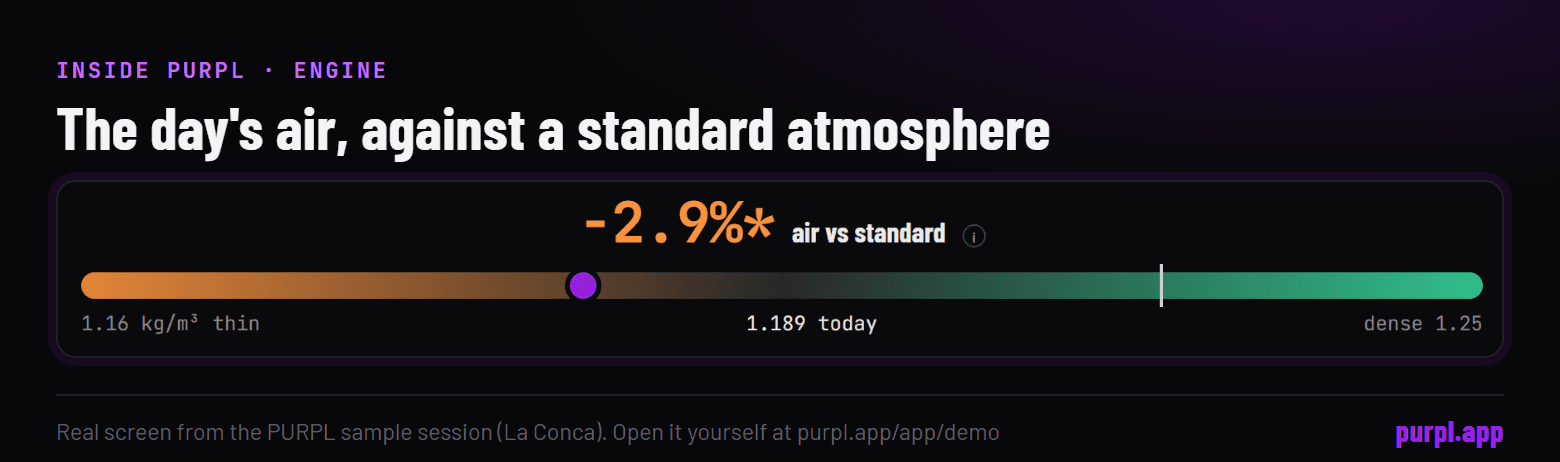

Air density is the silent jetting partner. And it has directions you can memorise.

Cold, dry, low-altitude air is dense: more oxygen per gulp, so the engine effectively leans out and wants more fuel, richer jetting. Hot, humid or high-altitude air is thin: effectively richer, so the jetting goes leaner to match. Morning to afternoon on one summer day can move the right answer measurably.

The community references walk the adjustments well, KartClass's carb jetting guide among them. TKART's carburetion tools guide covers the hardware.

The data layer's contribution is the verdict: whatever the weather math suggested, the EGT windows confirm or veto it within one run. The math proposes. The trace decides.

The race-day drift that catches everyone

Carburetion isn't static across a race. And the drift direction is always the dangerous one.

As grip builds and the driver gets on throttle earlier and longer, the mixture runs effectively leaner and leaner. And in categories like OK and KZ2, that drift is how engines seize in the final third.

The classic protection is starting slightly rich: a dirty first response that cleans up as the race leans it. The sweet spot arrives mid-race instead of the danger arriving at the flag.

Watch the stint trend in the data afterwards. An EGT ceiling creeping upward lap over lap is tomorrow's jetting instruction, written by today's race.

The ear and the hand: analog backup that still wins

Two old-school checks stay in the method. They're real-time, and the probes aren't.

You can hear a lean engine: the note shifts, goes hard-edged and slightly too loud, the sound of margin disappearing. The response is immediate and free, richen the mixture. Or the ancient move of a hand over the carb down the straight, forcing it richer for a moment while you get home.

The numbers confirm later what the ear flagged live. Both witnesses, always. Especially on hot afternoons, when the drift is fastest.

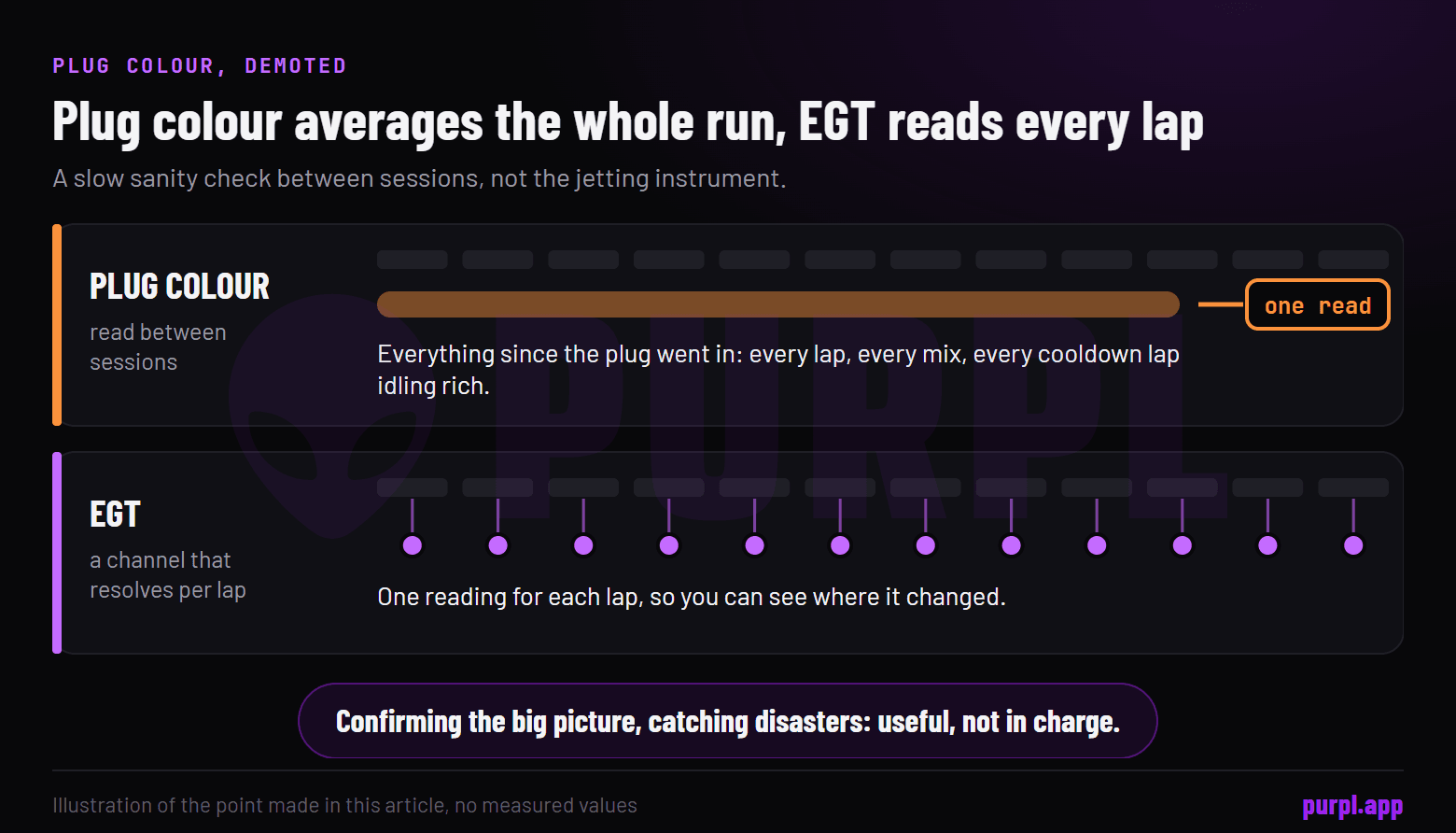

Plug colour, demoted properly

The spark plug read isn't useless. It's just been promoted far above its competence for decades.

Plug colour integrates everything the engine did since the plug went in, every lap, every mix, every cooldown lap idling rich. As a slow-moving sanity check between sessions, fine. As the primary jetting instrument while an EGT trace sits unopened on the laptop, it's folklore outranking measurement.

Demote it to what it does well: confirming the big picture, catching disasters, and giving the tuner another data point alongside the channels that resolve per-lap, per the sensor stack. Useful, not in charge.

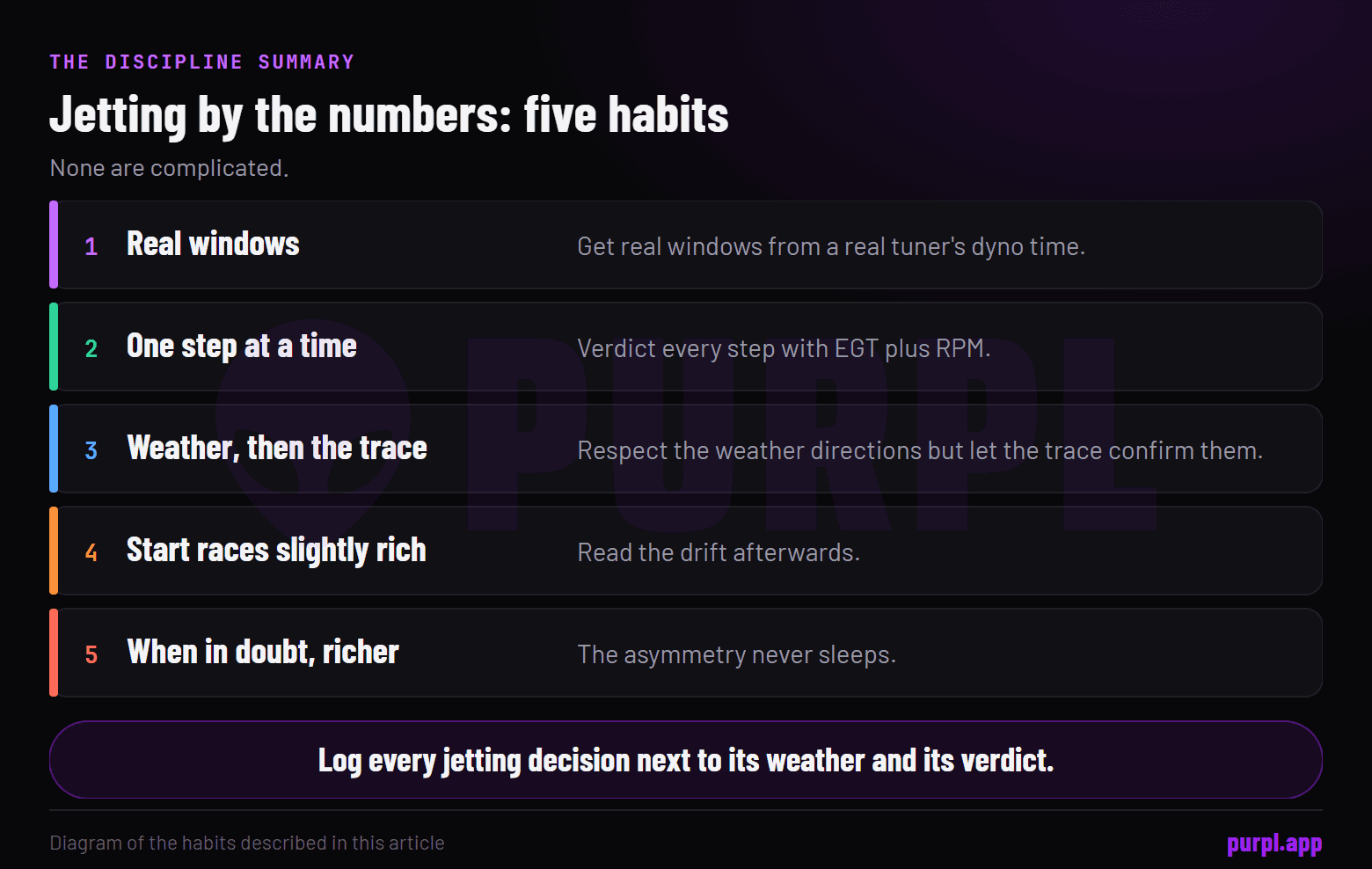

The discipline summary

Jetting by the numbers compresses to five habits. None are complicated.

Get real windows from a real tuner's dyno time. Move one step at a time and verdict every step with EGT plus RPM. Respect the weather directions but let the trace confirm them.

Start races slightly rich and read the drift afterwards. And when in doubt, richer, because the asymmetry never sleeps.

Log every jetting decision next to its weather and its verdict in the session sheet, the habit from the data starter sheet. A season of rows becomes your own jetting chart, for your engine, your tracks, your seasons, and that beats any generic table ever printed.

FAQ

How do I know if my kart is jetted rich or lean?

EGT against your tuner's windows is the direct answer: below the window is rich, above it is lean, and the top and bottom read separately.

The supporting cast: a soft, four-stroking engine sounds rich; a hard-edged, overly crisp one warns lean. Trust the trace over the vibe.

And read both ends before changing anything. An engine can sit rich at one end and lean at the other in the same session. That's why the windows come as a pair.

How much should I change jetting per step?

One increment of whatever your carb adjusts, one run, one verdict. Small steps cost minutes; big steps cost either lap time or engines depending on the direction you overshot.

If the day clearly moved, say a cold morning into a hot final, correct for the weather first, then verify that correction like any other step.

The size of the step can change. The discipline of one verdict per change doesn't.

Do I need to rejet during a race day?

Usually, yes, at least once as the day's temperature and grip move, because morning settings rarely survive an afternoon final untouched.

The EGT trend from each session tells you the direction; the weather directions tell you why. Build the check into the day's rhythm instead of treating it as an emergency.

A quick look at the trace after every session, a small correction when the windows ask for one, a note of what changed. Karts that seize in the final are usually karts that were jetted once, at nine in the morning.

What if I don't have an EGT sensor yet?

Then jet conservatively rich, lean on the ear test hard, and treat the sensor as your next purchase if you're tuning seriously, the buying order from kart sensors explained.

In the meantime, borrow verdicts where you can. A teammate's trace from the same session, the tuner's ear in the pit lane, peak RPM off your own dash.

None of those replace the probe. They keep you on the safe side until it arrives. Folklore without instruments is how most seized engines got that way.

---
